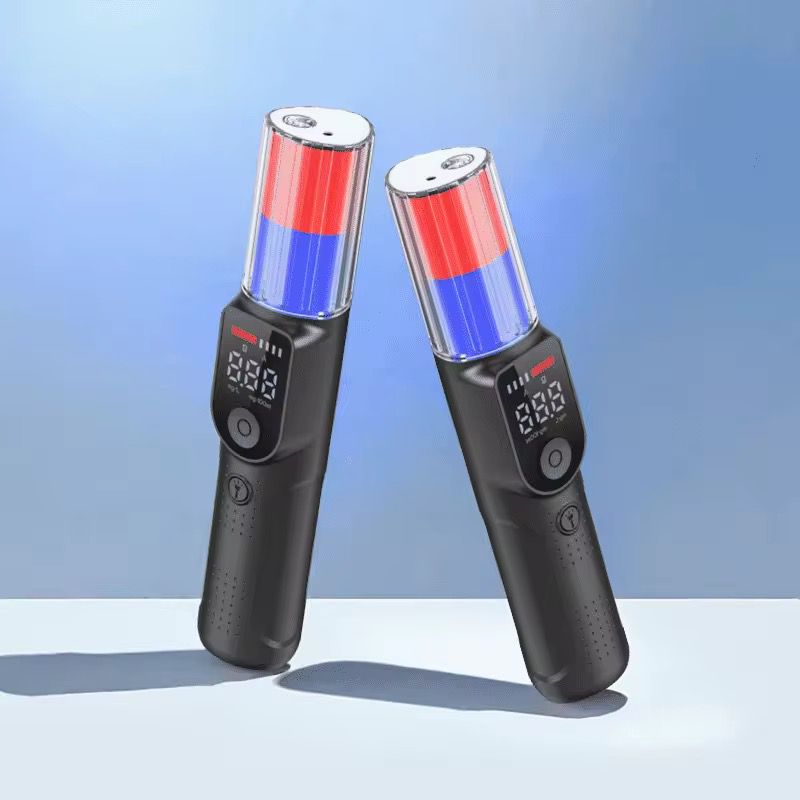

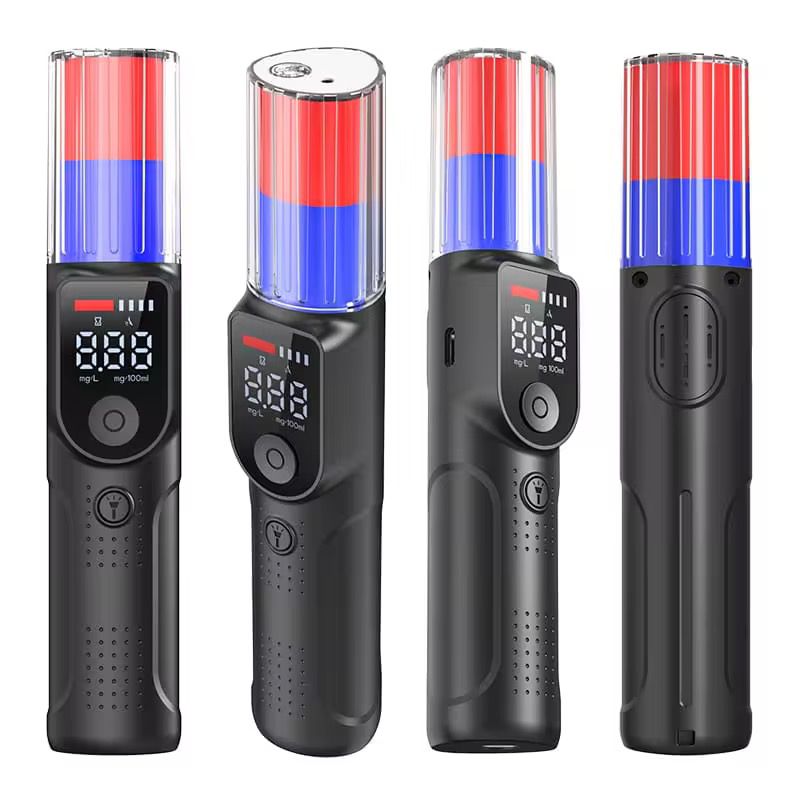

ALCOHOL TESTER

Sensor & Measurement

• Sensor Type: Semiconductor Sensor

• Measurement Range: 0 mg/100 mL to 400 mg/100 mL

• Resolution: 1 mg/100 mL

• Sensitivity: 8 mg/100 mL

Accuracy

• Reference Testing Distance: 5 cm

• When the standard reference concentration is 50 mg/100 mL,
  the indication error is approximately within ±10 mg/100 mL

Operation & Performance

• Sampling Method:

  • Blowing induction

  • Manual detection

• Continuous Measurement Time: 5 to 15 seconds

• Result Output Time: 3 seconds

• Zero Return Time: 5 to 15 seconds

Environmental Conditions

• Operating Temperature: –5°C to +45°C

Data & Storage

• Data Storage Capacity: 10 records

User Interface & Controls

• Operating Mode: Two-button operation

• Warning light and illumination light can operate independently even when the device is powered off

Auxiliary Functions

• High-brightness white LED illumination

• Red and blue warning lights

• Voice broadcast support (up to 100 voice prompts/words)
